ANALYTICAL
INSTRUMENTATION
CEMS SOLUTIONS & PROCESS ANALYSER
CEMS SOLUTIONS
Dust

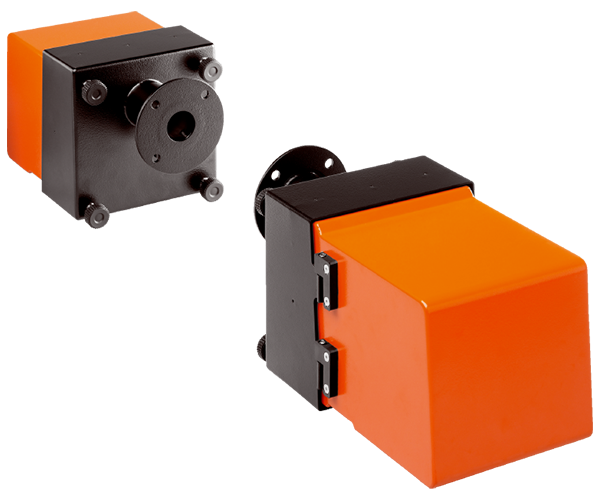

DUSTHUNTER T100
- For medium to high dust concentrations
- Integrated contamination check
- Automated check of zero and reference point
- For small to large measuring distances
Dust

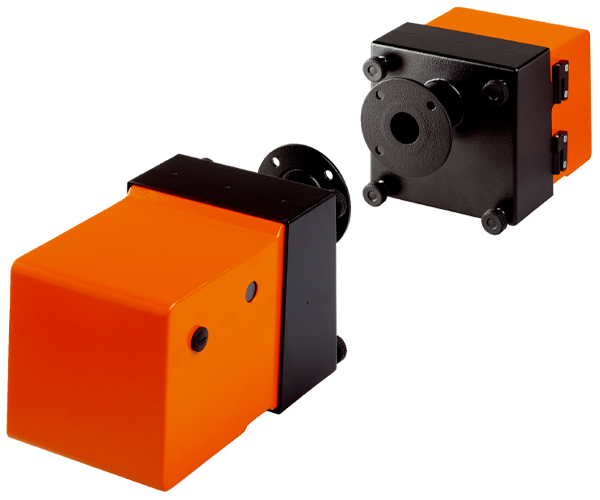

DUSTHUNTER T200
- Integrated soiling check for sender-receiver and reflector unit
- Automated self-alignment of the optical modules
- Automated check of zero and reference point
- For medium to high dust concentrations
- For small to large measuring distances
Dust

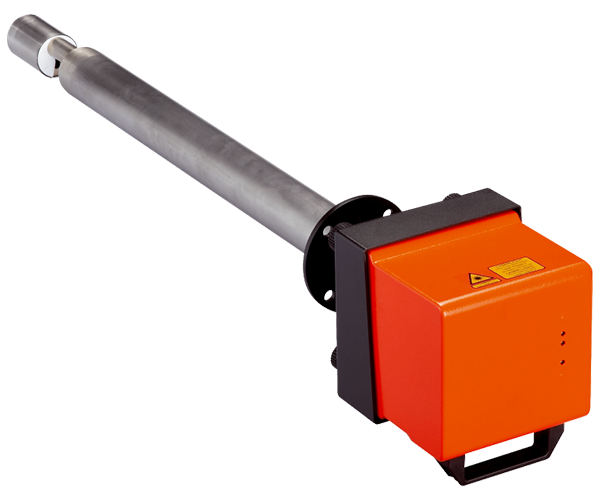

DUSTHUNTER SP100
- Installation from one side
- For very low to medium dust concentrations
- Automated check of zero and reference point
- Contamination check
- Hastelloy probe available for corrosive gases
- For small to medium duct diameters
- Device version for Ex zone 2
Dust
DUSTHUNTER FWE200DH
- For very low to medium dust concentrations – WET gas
- Gas sampling and return combined in one probe
- Contamination check
- Automated check of zero and reference point
- Simple parameterization and convenient operation – optionally via an additional remote display
- Integrated system monitoring to detect the need for maintenance at an early stage
Dust

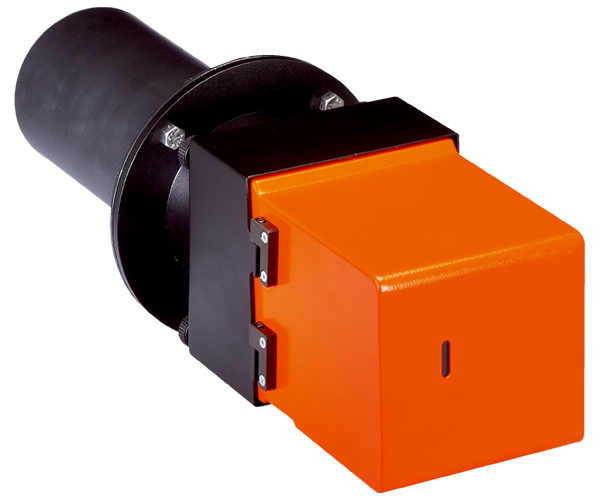

DUSTHUNTER SB100
- For very low to medium dust concentrations
- Installation from one side
- Contamination check
- Automated check of zero and reference point
- Automated compensation of background radiation, therefore no light absorber required
- For medium to large duct diameters
Extractive

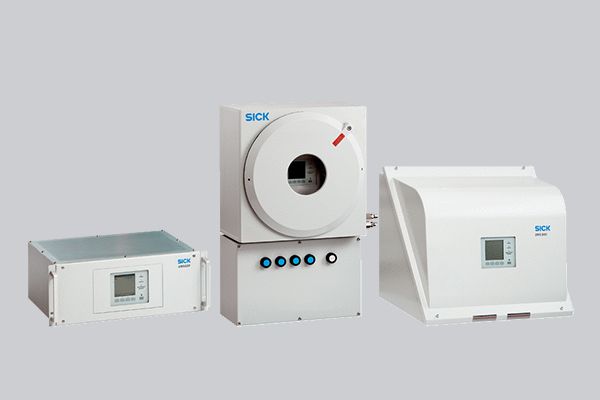

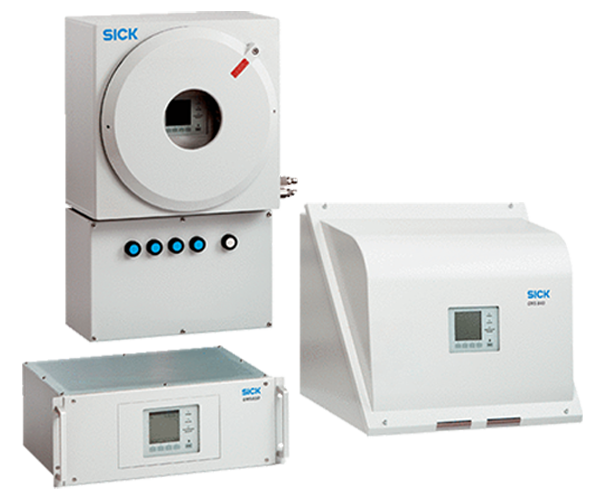

GMS800 - COLDDRY
The GMS800 is a product familiy of extractive analyzers which can measure more than 60 different gas compounds. The GMS800 is characterized by its modular design: 6 analyzing modules, one gas module, I/O modules and an operating unit. Standardized 19” racks can be used for economic system integration. Wall mounting enclosures with an ATEX approval for hazardous areas can be used in rough industrial environments. Equipped with modern software, the GMS800 comes with the required interfaces for remote control via networks through to the connection to a process control system.
Extractive

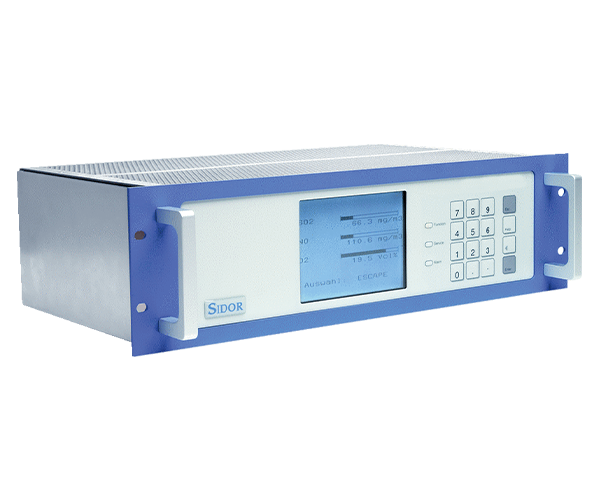

SIDOR - COLDDRY
The SIDOR is a gas analyzer for measurement of up to 2 infrared components. Additionally oxygen can be measured by integration of an electrochemical or paramagnetic measuring cell. A significant characteristic is a half-yearly maintenance interval with test gases. The stability of the measuring cells allows an adjustment with only inert gas or ambient air within this half-year period. Sample gas pressure compensation is included as a standard. The SIDOR was type approved for large combustion plants and crematories.
Extractive

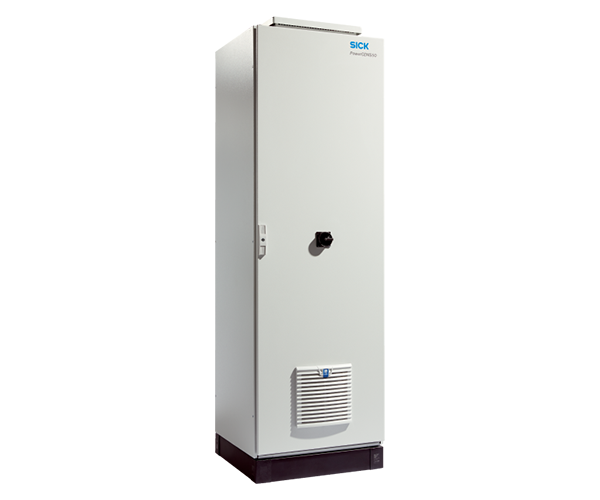

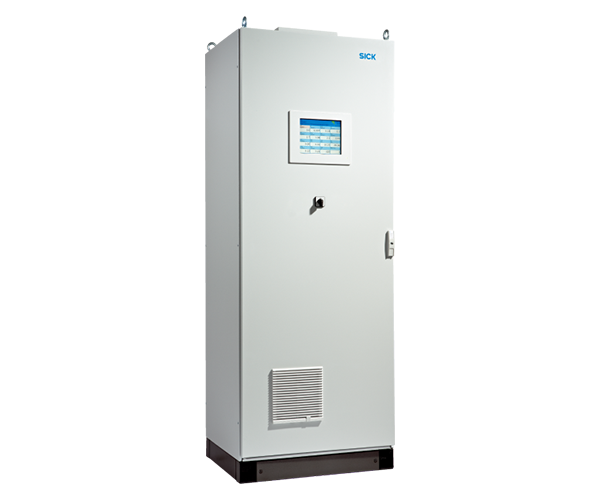

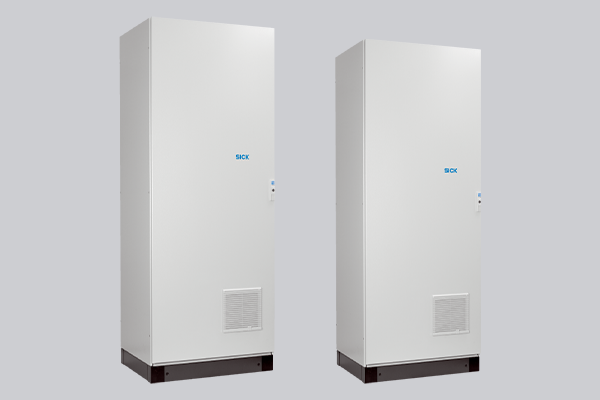

POWERCEMS100 - COLDDRY
The PowerCEMS100 continuous emission monitoring system (CEMS) is an economically and technically perfect solution for extractive measurement tasks. This all-in-one system comprises high-quality standard assemblies and components and can be adapted to the application-specific requirements thanks to its modular system design. Retrofitting analyzer modules or gas conditioners is easy and inexpensive. The innovative PowerCEMS100 system is certified according to European standards EN 15267-1/-3 and EN 14181, and offers future-proof solutions for emission measurement and process applications.
Extractive

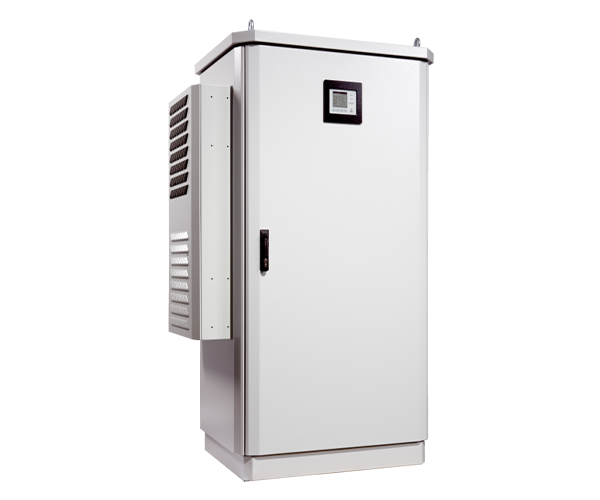

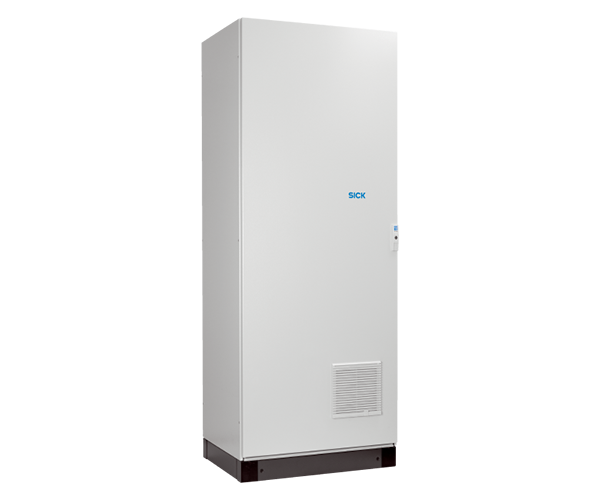

POWERCEMS50 - COLDDRY
The PowerCEMS50 continuous emission monitoring system (CEMS) was specially developed for measuring the emissions from fossil fuel power plants. The extractive basic system, which features an analyzer and a gas conditioner, is designed for measuring the typical gas components CO, NOx , SO2, and O2. The PowerCEMS50 analyzer system is characterized by its compact design and attractive price/performance ratio, with no compromise in performance in industrial use.
Extractive

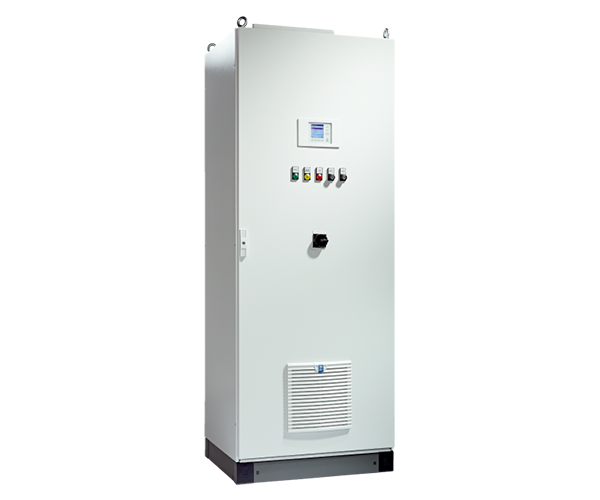

MCS100FT - HOTWET
The FTIR measuring principle allows the simultaneous determination of more than 12 measuring components – tailormade for the particular requirements of the customer. The MCS100FT FTIR analyzer system with its heated measuring cell enables the monitoring of hydrogen fluoride limits as requested by legislation. The MCS100FT is equipped with an oxygen sensor as standard and can be supplemented with a total hydrocarbon analyzer. With its reliable measuring technology, its easy operation and low maintenance requirements, the MCS100FT provides a solution that offers unequalled opportunities.
Extractive

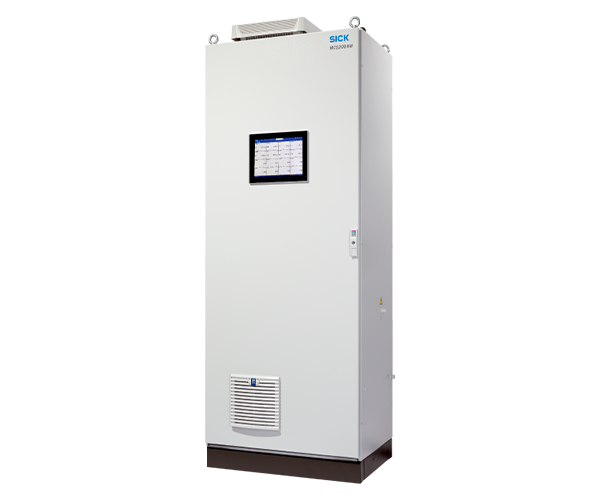

MCS200HW - HOTWET
The MCS200HW is a multi-component analyzer system for continuous monitoring of up to 10 IR measurement components in flue gases of industrial combustion plants. The MCS200HW is hot/wet extractive: All parts which touch media, from the gas sampling probe to the cell, are heated above the dew point and therefore protected from corrosion. An integrated oxygen sensor also measures oxygen. As an option, a TOC measurement can be supplemented via an integrated GMS811 FIDORi. Internal reference point monitoring allows for a quick check of the measured values with test gases. The web display and the task assistant integrated in the software makes operation very easy.
Flow
FLOWSIC100
- High acoustic power – ideal for large stacks with diameters from 3 to 13 m
- Certified for use in plants requiring a permit in accordance with 13th, 17th and 30th BImSchV (German Federal Immission Control Act) and TA Luft (German Technical Instructions on Air Quality Control) as well as in accordance with 27th BImSchV, MCERTS and GOST
- Also suitable for applications with high dust levels
Flow

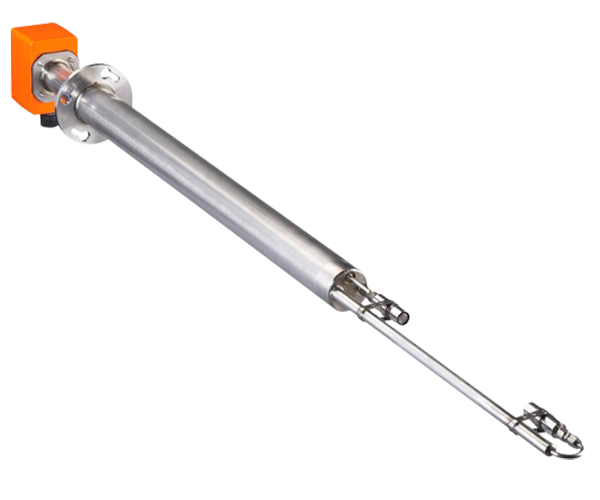

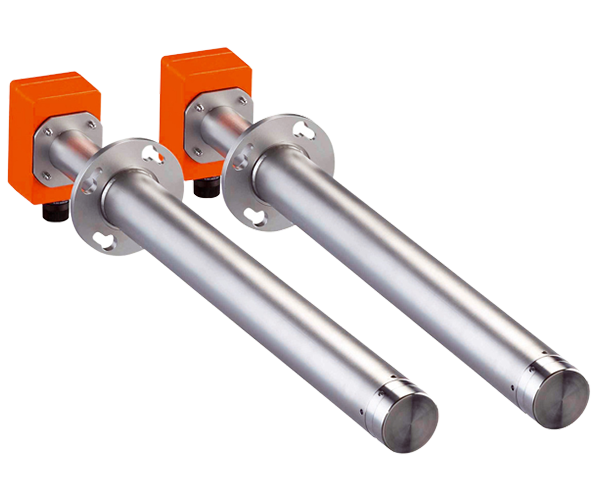

FLOWSIC100 PR
- Ideal for one-sided installation with stack diameters from 1 m
- Certified for use in plants requiring a permit in accordance with 13th, 17th and 30th BImSchV (German Federal Immission Control Act) and TA Luft (German Technical Instructions on Air Quality Control) as well as in accordance with 27th BImSchV, MCERTS and GOST
In Situ

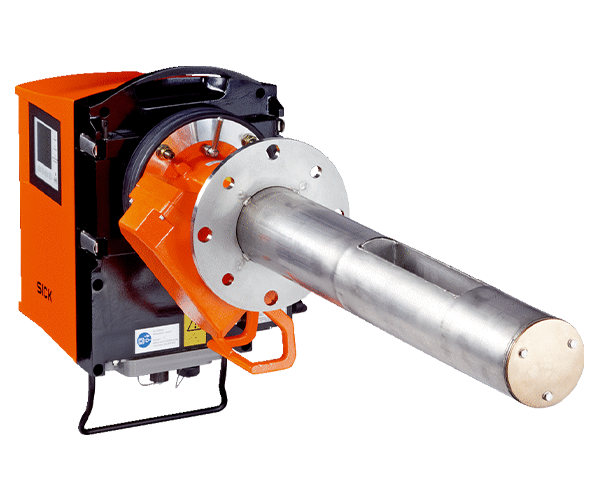

GM32 IN-SITU GAS ANALYZERS
Efficient measurement of SO2, NO, NO2, NH3 as well as TRS components in the Kraft pulp process.
In Situ

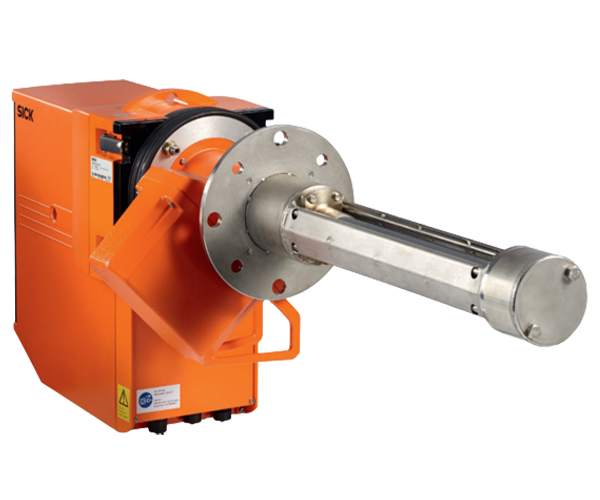

GM35 IN-SITU IR GAS ANALYZER
Simultaneous or individual measurement of co2, h2o and co or n2o.
In Situ
GM700 LASER GAS ANALYZER
Efficient process analysis – even under difficult conditions – ammonia (NH3), hydrogen fluoride (HF), and hydrogen chloride (HCI).
Mercury

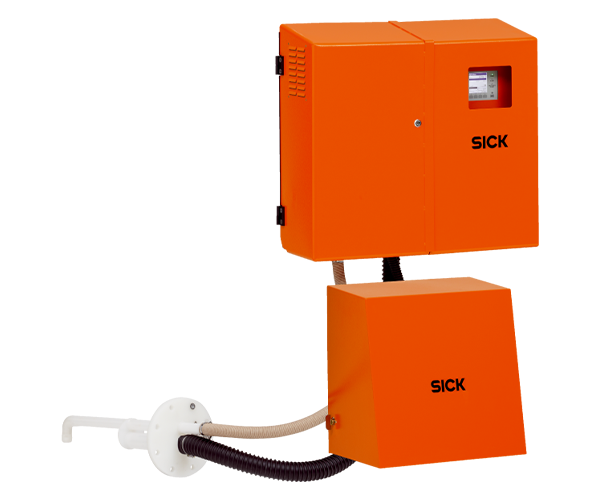

MERCEM300Z
The MERCEM300Z mercury measuring system monitors Hg emissions in flue gases with high reliability within the smallest measuring ranges. Due to its rugged housing, MERCEM300Z is suitable for use in harsh industrial environments. The complete extractive system is designed to meet national and international regulations and directives.
PROCESS ANALYSER

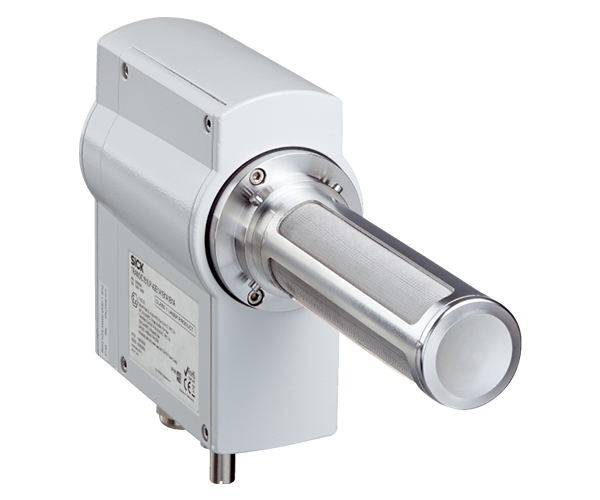

TRANSIC100LP
Measuring the oxygen in the process can be quite simple. The TRANSIC100LP from SICK is the rugged transmitter that uses Tunable Diode Laser Spectroscopy (TDLS) to measure O2 reliably. A technology more common in the world of high-tech analysis, is now being used in a field instrument: at an attractive price, easy installation, a long life, low maintenance and suitable for use in potentially explosive atmospheres.
MCS300P
The MCS300P HW is a hot/extractive analyzer system for measurement of gases. It measures IR- or VIS-active components with variable measuring ranges for monitoring and controlling of combustion and flue gas conditioning. The heated system components prevent a temperature drop below the water and acid dewpoint. This results in lower maintenance and higher reliablity and long-time stablity of the system, also under rugged and demanding conditions. Automatic adjustment functions, easy operation concept and modern communication protocols results in a quick and easy integration into a local control system network.

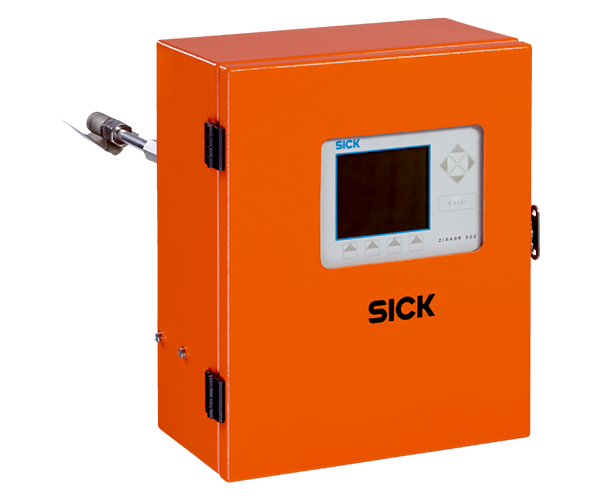

ZIRKOR302
The ZIRKOR302 in-situ gas analyzer from SICK can be relied upon to measure oxygen quickly even at increased temperatures. Thanks to the flow sensor measurement principle, it does not require expensive test gases – ambient air is sufficient. The analyzer is not an ignition source in the measurement gas due to its safety-related construction. The optional evaluation unit allows you to operate up to three analyzers.
